32 Ports GSM 3G WCDMA SMS Modem Pool

Overview

GSM MODEM pool also known as "SMS Modem Pool" in China, USB 2.0 can be used directly into the computer USB port, for laptops, desktops can be used. Break the rule that multi-tech can only be used in desktop computers. Built-in wireless modules can be inserted SIM cards, simultaneously to send text messages.

The device built-in 1/4/8/16/32/64 wireless modules can be inserted8/16/32/64 SIM cards, can use eight cards to send text messages, send speed as 8/16/32/64 times as a single channel modem. It uses the development of QUECTEL module, 220V power supply, can be a long time stability, generous luxury housing.

WCDMA frequency:

Quad band :

UC15-E:  GSM900/1800， UMTS900/2100

UC15-A：GSM850/900/1800/1900， UMTS850/1900

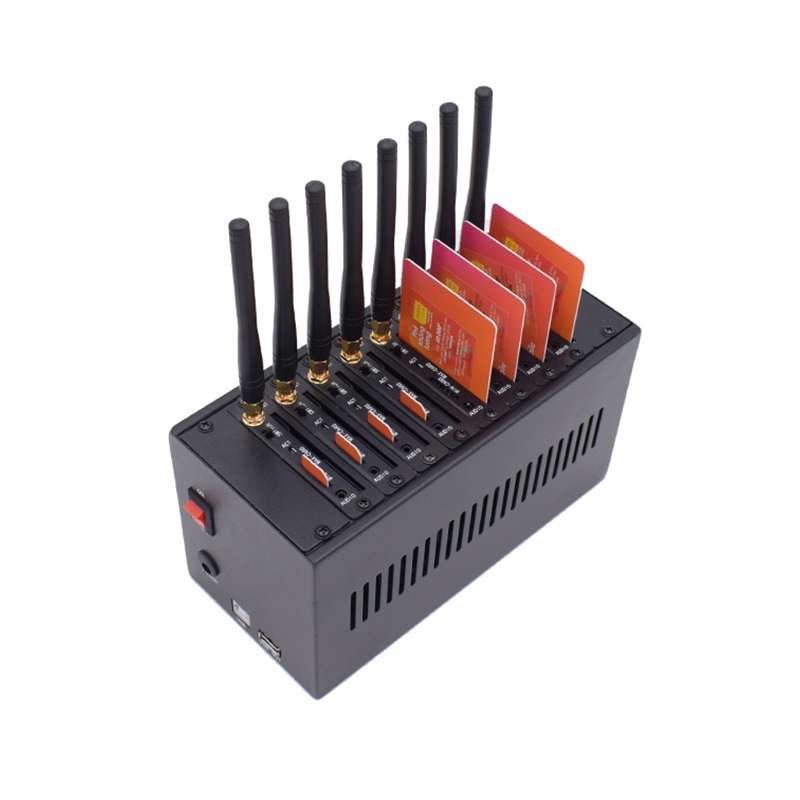

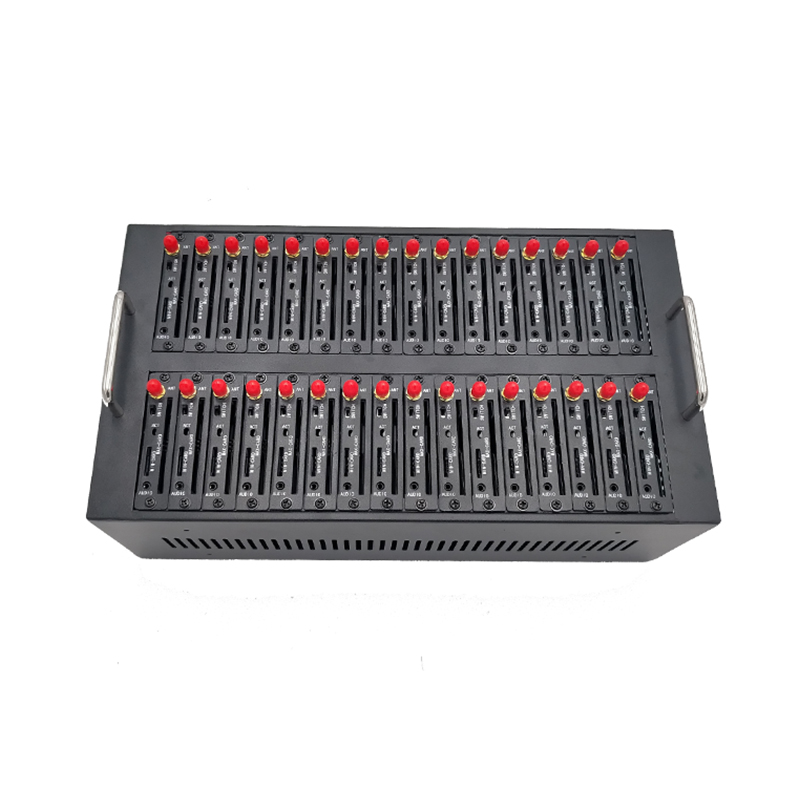

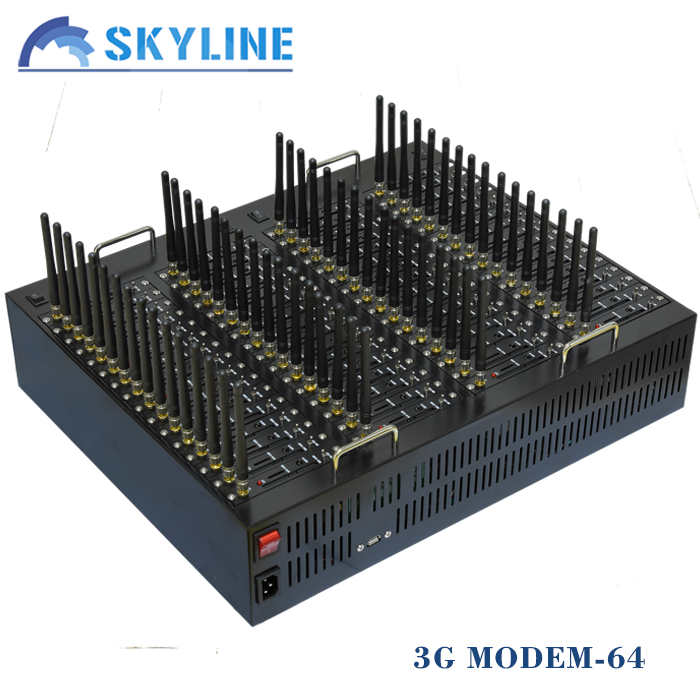

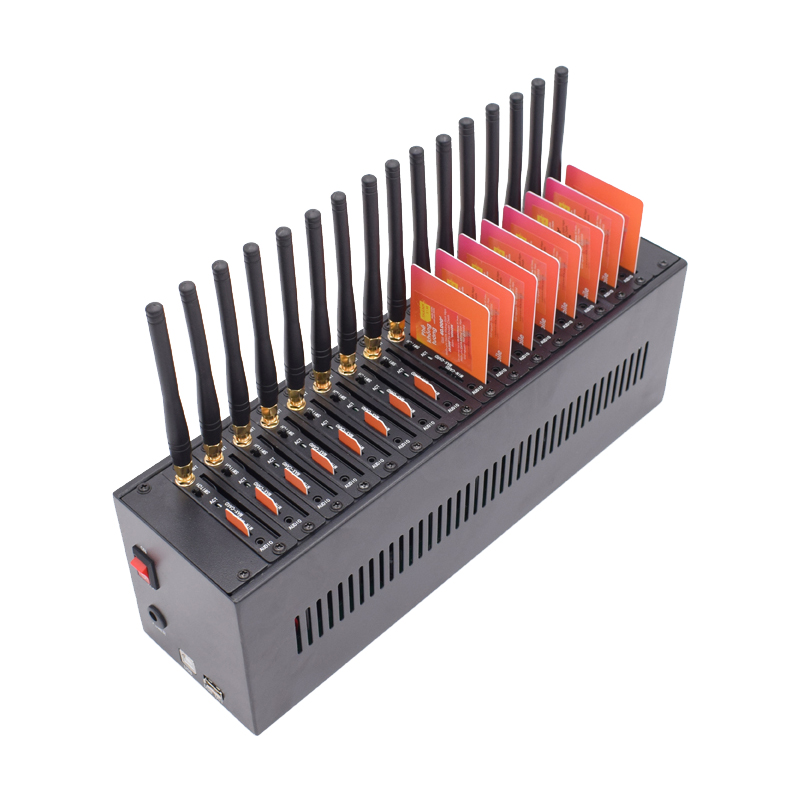

There are 4 models of WCDMA SMS Modem which are 8 ports,16ports,32ports and 64ports:

Specifications:

1, Quad band :

UC15-E:  GSM900/1800， UMTS900/2100

UC15-A：GSM850/900/1800/1900， UMTS850/1900

2,IMEI Change

3,USB optional

4. AT Command

5.Operating Temperature: -20 ° C - + 55 ° C

6.Storage temperature: -25 ° C - + 70 ° C

7. Transmit-receive rate:2800~3000 sms/Hour per port

8. SMS

Text and PDU mode.

Point to point MO and MT.

SMS cell broadcast.

SMS storage: ME by default.

9.Audio Features

Support two analogy input channels and two analogy output channels.

GSM: HR/FR/EFR/AMR/AMR-WB.

WCDMA: AMR/AMR-WB.

Echo cancellation and noise suppression

10.8/16/32/64 sim slot reliable

Main Features:

1,Connect with the Computer through USB line for USB type.

2. USB Interface (Optional)

4. Can send and receive SMS in bulk

5.Can dial the number and answer the call

6. Industrial Chassis, Elegant Appearance design.

7. support Windows XP, Windows7, Linux, Unix OS etc.

Basic Features:

1. Baud rate: 115200 bits/s

2. Automatic baud rate: from 2400 to 19200 bits/s

3,GPRS compatible

4. SMA antenna interface

5. Built-in Ac-adapter: 5V/6A

6. USB ports support

7. AT command control (Compliant with 3GPP TS 27.007, 27.005 and Quectel enhanced AT

commands.)
